Basic
| Dimension (L × W × H) | 1500 × 850 × 2800 mm |
| Rotation diameter | 1700 mm |
| Dead weight | 500 kg |
| Rated load | 30 kg per case |
| Fit case (L × W × H) |
|
| Minimum aisle width | 1000 mm |
| Minimum picking height | 270 mm |
| Number of shelves at the back | Maximum 8 layers |

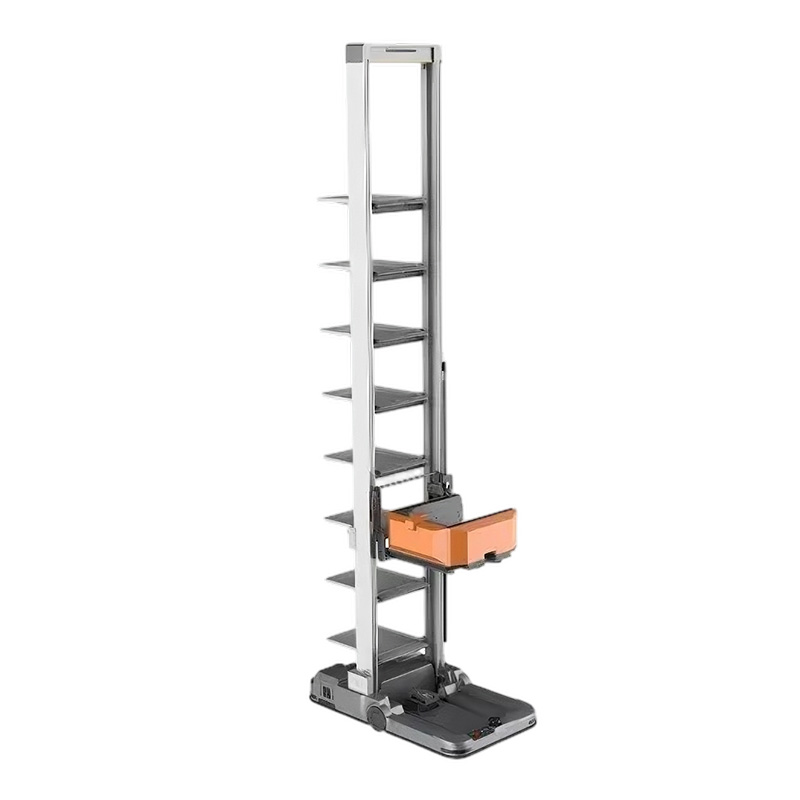

Case Transfer Unit (CTU)
Velocity & Operations
| Max speed |
|
| Turning speed | 1.0 s for 90° (loaded/unloaded) |
| Pickup & deposit tact time |
|
Navigation
| Positioning accuracy | ±5 mm |
| Angular accuracy | ±1° |
| Stop accuracy | ±10 mm |
Battery
| Type | FeliPO4 |
| Capacity | 48V / 35Ah |
| Using time | 8 h |
| Charging time | 1.5 h (0 to 100%) |
| Life cycle | 1500 full cycles |
Environment
| Ambient temperature | 0 – 45 °C |
